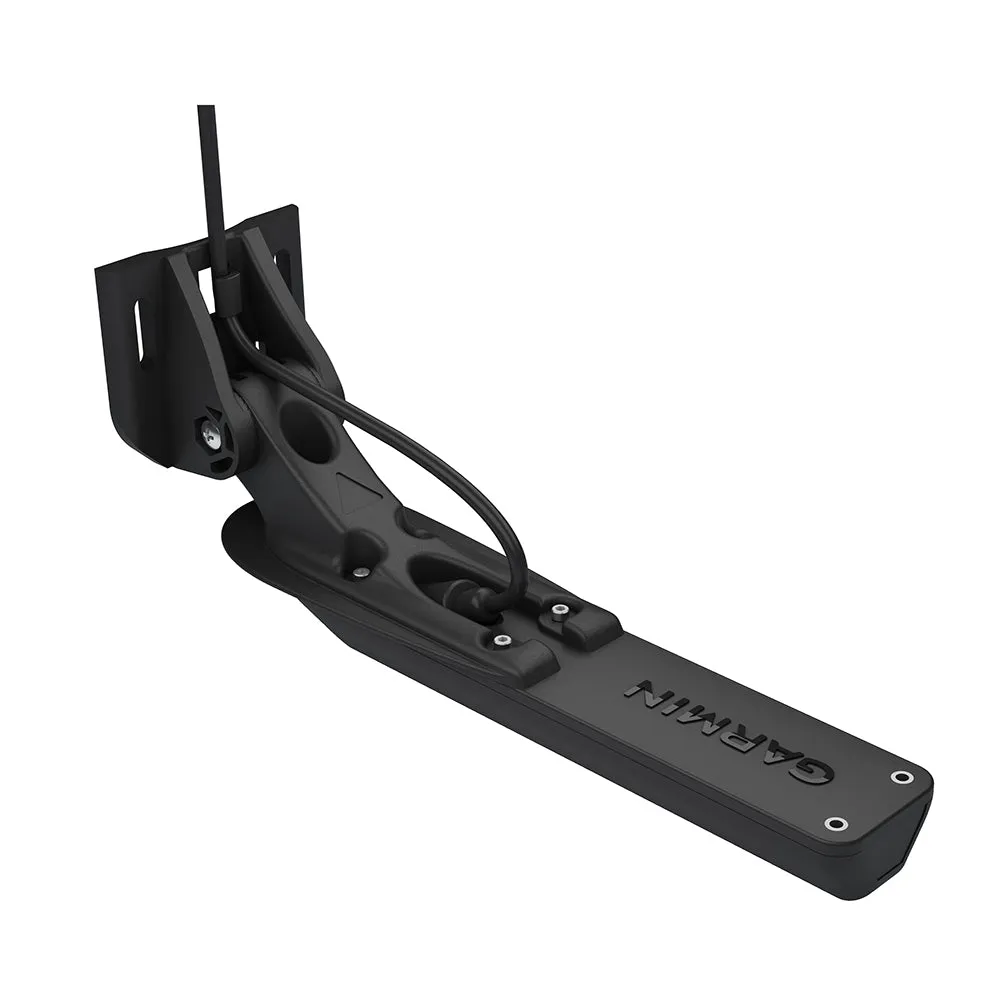

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°
• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth

• Ultra High-Defintion ClearVü: 200' down
• Ultra High-Defintion SideVü: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20'
• Supported deadrise/Transom angles: 0°-70° degree transom

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 12
• Mounting Style: Transom
• Imagining: Down/Side
• Chirp: Non Traditional
• Cable Length (Feet): 20'
• Box Dimensions: 4"H x 7"W x 10"L WT: 2 lbs
• UPC: 753759206338
